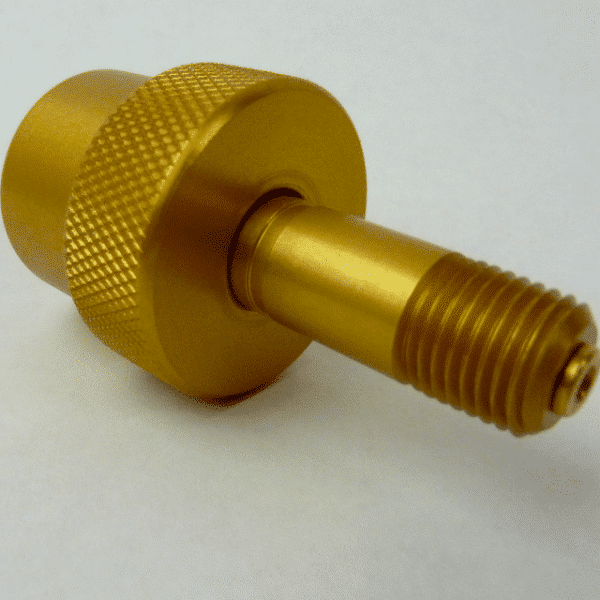

SCBA Hand Tight Fill Adapter

Description

• Type:  SCBA Fill Adapter
• Maximum Rated Pressure:  6000 psi
• Inlet Port Size:  1/4 in. MNPT
• Outlet Port Size: Seals with both CGA346 and CGA347
• Flow Coefficient (Cv):  0.04 in. orifice
• Weight:  90 g
• Overall Length: 3 in.
• Round Diameter: 1.5 in.
• Body Material: Anodized Aluminum Steel Retainer Clip
• Seal Materials:  Viton
• Repair Kit/Service Items: 835-9

Downloads

• Models 708 & 835 SCBA Fill Adapters Operation & Maintenance Manual
• Technical Bulletin for 708 & 835 SCBA Fill Adapter
