$999.99

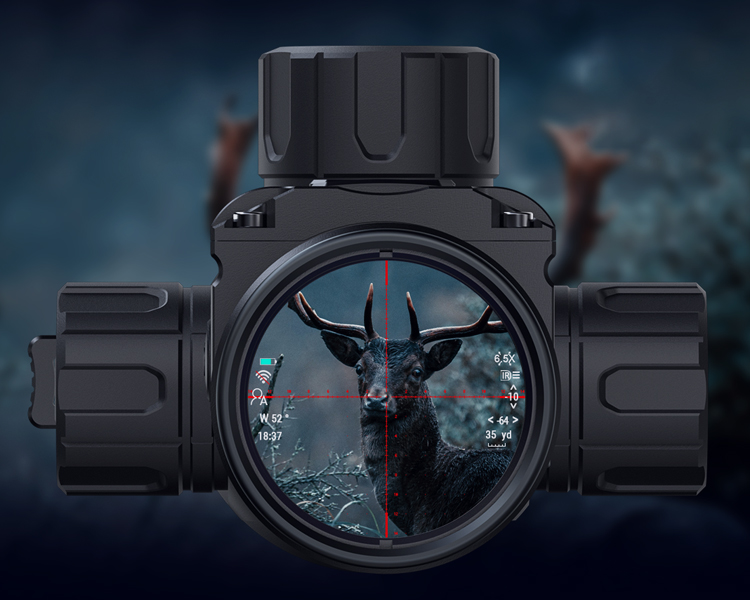

The DS3x series uses an 800*800 LTPS circular display, which delivers high-clarity images with rich contrast and has an extra-wide field of view for enhanced situational awareness. Viewing feels more natural, like you are viewing from a traditional day scope.
It’s now easier and more convenient to zero your scope. The image will shift to align with the impact point, instead of shifting the position of the reticle. The crosshairs will always remain fixed in the center allowing you to use the entire field of view.
The lens cap was designed based on the pinhole theory, so that when it gets too bright during the day, you can use the lens cap as a sunshade and then open the small hole. There is no need to refocus the scope, when observing different targets at different distances.
The CMOS 0.001 low lux image sensor performs well in low light and delivers higher resolution images. The DS35 has a 2560*1440 (2K) sensor and the DS33 has a 1920*1080 sensor to suit your needs.
Targets can be detected up to 1200yds away. The newly developed compact ranging module is precise and has fast detection speed. When paired with integrated ballistics, the LRF gives you the range information you need at night to hunt smarter.
It’s now easier and more convenient to zero your scope. The image will shift to align with the impact point, instead of shifting the position of the reticle. The crosshairs will always remain fixed in the center allowing you to use the entire field of view.
You can unscrew the IR head and point the IR light in your desired direction. The IR light helps in target identification and is ideal for spotting and navigation. At night, the IR illumination range can reach up to 500 meters.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Sensor
Resolution(px): 2560*1440
Pixel size(um): 2.9um
Sensitivity(lux): 0.001lux
Frame rate(fps): 30fps(night); 60fps (day)
Image Engine: PARD VLEA
Optics
Objective lens: 70mm F2.4
Optical Magnification(x): 5.6x
Digital zoom(x): 2x
PIP(x): 2x
Continuous digital zoom: 5.6-22.4x
Field of view (HxV): 3.4º, 3.4º, 4.8º
Focus range: 5m-∞
Eye relief(mm): 100mm
Exit pupil(mm): 10mm
Diopter adjustment(°): TBD
IR Illuminator
IR Type: VCSEL
IR power: 5W
IR illuminating level: 3 levels
IR distance(m):350m
IR Wavelength(nm): 850nm/950nm
Display
Type: IPS LCD
Resolution(px):800*800
Reticle Styles: 6
Reticle Colors: white, yellow, green
Color mode: Color, Mono BW, Mono Green, Mono Yellow
Photo / Video
Photo resolution(px): 2560*1440
Photo format: JPG
Video resolution(px): 1920*1080
Video format: MP4
Storage(GB): TF card(128GB)
Main function
PIP: Yes
LRF detection range(yds): 1000yds(LRF version)
Ballistic calculator: Yes
Range unit selection: meter/yard
Gyroscope: Yes
Self-activated recording: Yes
Auto recording: Yes
Loop recording: Yes
Time stamp: Yes
Record audio: Yes
Beep sound: Yes
Exposure compensation: Yes
Interfaces
USB Type-C
HDMI Output: Yes
Connections
WiFi: Yes
Supported Apps: PardVision
Power Supply
Battery type: Lithium Ion18650
Output voltage(V): 3.7
Operating time(h,max): 8
External power supply(V): USB Type-C
Environmental characteristic
Degree of protection: IP67
Operating temp(°C): -20 – 50
Recoil Power(J): 1000G
Material
Housing: Aluminium Alloy
Objective lens: Glass
Measurement
Product dimension(L x W x H, mm): L350mm*W88mm*H95mm(W/O Long Eyepiece)
L410mm*W88mm*H95mm(W/ Long Eyepiece)n
N.W/pcs(without battery, g): 680g(W/O Battery)
Â
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Lens | 50mm (4x – 8x), 70mm (5.6x – 11.2x) |
| IR (Infrared) | 950 nm, 940Nm, 850nm |
