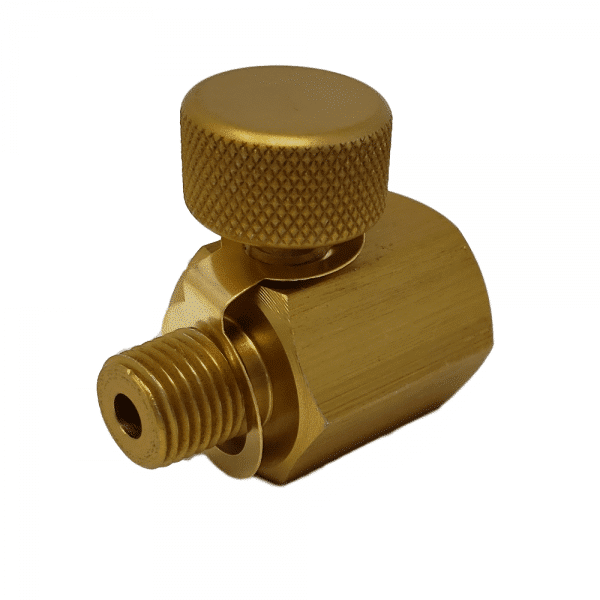

Bleed Valve Inline Hand Tight

$29.00

  • In line, hand operated bleed valve.
  • 1/4 NPT
SKU: 14F14MBLEED Category: Tags: , ,

Description

  • Maximum Rated Pressure: 6000 psi
  • Inlet Port Size: 1/4 in. FNPT – interchangeable with outlet port, functions same either direction
  • Outlet Port Size: 1/4 in. MNPT – interchangeable with inlet port, Vents to Atmosphere
  • Weight: 60 g
  • Overall Length: 2 in.
  • Hex Diameter:  1 in.
  • Body Material: Anodized Aluminum
  • Repair Kit/Service Items: p/n 715

Additional information

Operation & Maintenance Manual

http://airtanksplus.com/wp-content/uploads/2016/12/1000_OM_712_090811P.pdf

Technical Bulletin for Hand Operated Bleed Valve

http://airtanksplus.com/wp-content/uploads/2016/12/0731A_TB_031101R.pdf
